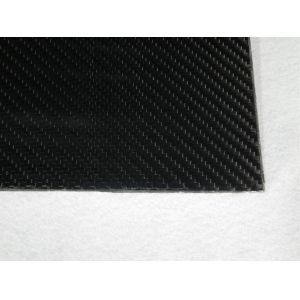

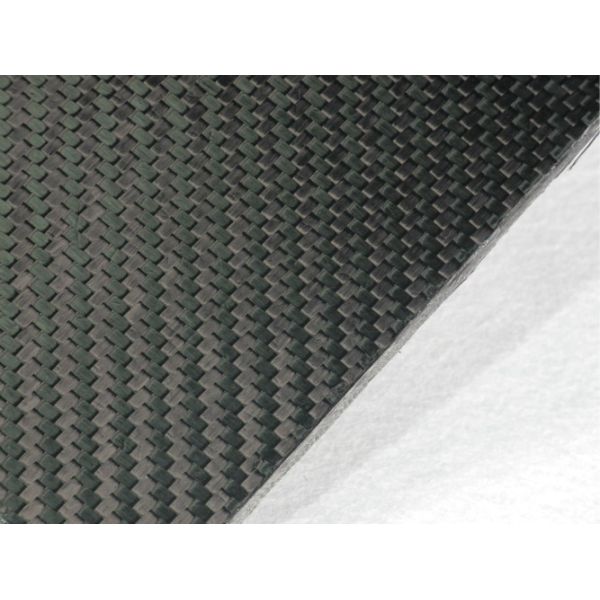

3K Twill glossy Carbon Fiber Plate 1.5mm Thickness 250mm*350mm Sheet UAV use .

Compared with the carbon fiber cloth, carbon fiber board has the following

advantages

1. Carbon fiber sheet is more suitable for adopts prestressed reinforcement method, can give full play

to their role as the carbon fiber high strength more,
2. Construction is convenient, easy to guarantee construction quality,
3. Carbon fiber plate than carbon fiber cloth is easy to keep straight, more conducive to carbon fiber,
4. A 1.2 mm thick plate is equivalent to 10 layers of carbon fiber cloth,
5. Compared with fiber cloth, fiber board wall brick mix structure are .

Specification

The development

During the 1980s Courtaulds continued to be a major supplier of carbon fiber for the sporting goods

markets, with Mitsubishi its main customer. Sadly, a move to expand, including building a manufacturing

plant in California, turned out unfortunately. The investment didn't generate the anticipated returns,

leading to a decision to pull out of the area. Courtaulds ceased carbon fiber production in 1991, though

ironically the one surviving UK carbon-fiber manufacturer continued to thrive making fiber based on

Courtaulds's precursor. Inverness-based RK Carbon Fibres Ltd has focused on producing carbon fiber

for industrial applications, and thus does not need to compete at the quality levels reached by overseas

producers.

Each carbon filament thread is a bundle of many thousand carbon filaments. A single such filament is

a thin tube with a diameter of 5-8 micrometers and consists almost exclusively of carbon. The earliest

generation of carbon fibers (i.e., T300, and AS4) had diameters of 7-8 micrometers. Later fibers

(i.e., IM6) have diameters that are approximately 5 micrometers.

Precursors for carbon fibers are rayon, polyacrylonitrile (PAN) and pitch. Carbon fiber filament yarns are

used in several manufacturing techniques: the direct uses are for prepregging, pultrusion, filament

winding, weaving, braiding, etc. Carbon fiber yarn is rated by the linear density (weight per unit length,

i.e. 1 g/1000 m = 1 tex) or by number of fibers per yarn count, in thousands. For example, 200 tex for

3,000 filaments of carbon fiber is three times as strong as 1,000 carbon fibers, but is also three times

as heavy. This count is usually expressed as 3K, 12K, 6K, etc. This thread can then be used to weave

a carbon fiber filament fabric or cloth. The appearance of this fabric generally depends on the linear

density of the yarn and the weave chosen. Some commonly used types of weave are plain, 2x2 twill,

4x4 twill and satin.

Display

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
